Revell Bikes - Parts

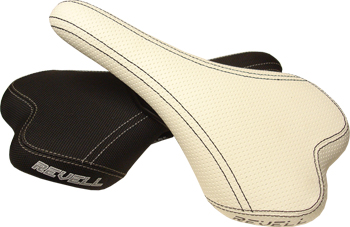

	slim seat wheel size: 24" 8mm chromoly rails with durable vinyle cover Thin padding design Colour – Black or White Weight – 260g

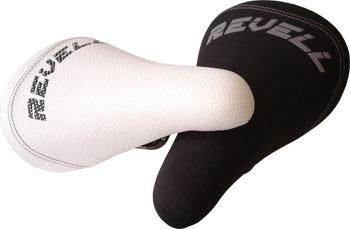

	dirt seat 8mm chromoly rails Comfortable padding for bar spin grip Colour – Black or White Weight – 330g



	team chainring CNC machined 6061 aluminium 2 crank position hole 25t, 28t, 30t, 33t, 36t & 39t Colours – Black or White Weight – 90g



	race crank 3pc crank Heat treated 100% chormoly Heat treated 19mm / 48 spline spindle Length - 170mm, 175mm Colour – Black, Blue, Pink, Grey, White Weight – 870g (arms with axle)

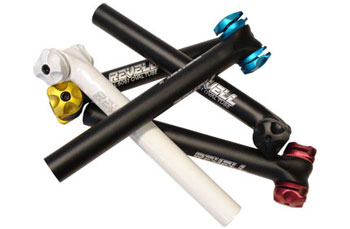

	team post 6061 aluminium 1 bolt assembly Spring loaded Length – 230mm Colours – White, Black/Blue, Black/Red, Black/Gold Weight – 230g



	Single Speed converter Aluminium 6061 spacer kit 16t & 18t cog & lock nut Simple to detach gears and run single speed Colour – Black, White, Blue Weight – 80g



	team pedals Fully CNC machined Sealed or unsealed Removable pins Colour – White, Gold, Blue, Red Weight – 600g



	lockdown grips Locking system to prevent slip grip Easy to fit Colour – Black, Black/Blue, Black/Red, Black/Gold, White Weight – 350g



	team bars Aluminium 6061 heat treated double butted tapered bar 2” & 3” rise bar 680mm wide 31.8 bar centre Colour – Black, White Weight – 260g



	stem - front load Full CNC 6061 aluminium front clamp stem Reach - 40 & 50mm 31.8 bar centre Colour – Black, White Weight – 260g



	stem - top load Full CNC 6061 aluminium front clamp stem Reach - 45 & 55mm 31.8 bar centre Colour – t.B.A. Weight – 0.00g

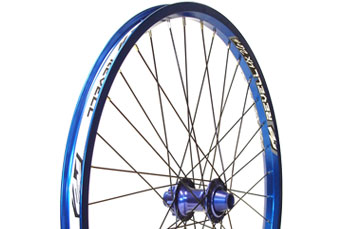

	Front Wheel 24 & 26” Built using a Revell Sealed 20mm bolt through front hub Revell 36h, double wall rim 14 gauged stainless spokes Including Rim tape Disc or V brake compatible Colours – Blue/Blue/Black, White/White/Black, Black/Black/White, Gold/Gold/Black Weight – 26” 1.22kg, 24”1.17kg

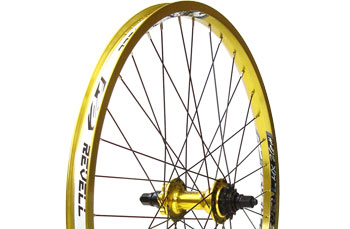

	Single Speed Rear wheel Built using a Revell sealed rear hub 4 Por driver, RHD 10mm chromoly hollow axle, Revell 36h double wall rim 14 gauged stainless spokes Including rim tape Disc or V brake compatible Colour – as above Weight – 26” 1.67kg 24” 1.56kg

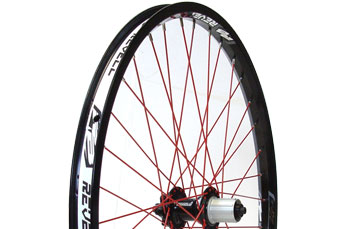

	9 Speed Rear Wheel Built using a revell sealed cassette hub 10mm allen key bolt axle Revell 36h double wall rim 14 gauged stainless spokes, including rim tape Disc or V brake compatible Colour – as above Weight – 26” 1.44kg 26” 1.33kg
